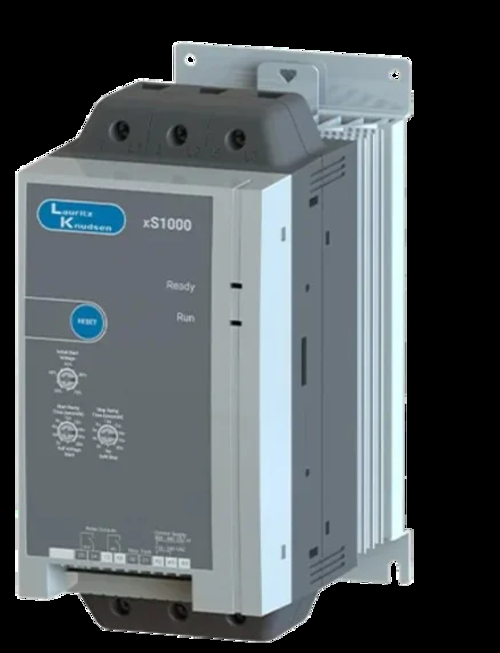

xS1000 Soft Starter
15000 INR/Piece
Product Details:
- Shape Rectangular
- Feature Soft Start/Stop, Bypass, Adjustable Current Limit
- Humidity % 5% to 95% (Non-condensing)
- Power Factor >=0.95
- Efficiency >98%
- Overheating Protection YES
- Mounting Type Panel Mount
- Click to view more
X
xS1000 Soft Starter Price And Quantity
- 15000 INR/Piece
- 1 Piece
xS1000 Soft Starter Product Specifications
- 380-480V AC
- 380-480V AC
- 3
- YES
- Panel Mount
- Low
- >98%
- Overload, Short Circuit, Phase Loss
- >=0.95
- Grey
- 5% to 95% (Non-condensing)
- Polycarbonate/Metal
- Digital Relay Output
- Soft Starter
- Rectangular
- Soft Start/Stop, Bypass, Adjustable Current Limit
- 230 x 135 x 153 mm
- IP20
- Three Phase
- Screw Terminal
- 4.5 kg
- Thermoplastic
- Industrial Motor Starting
- Screw Connectors
- -10C to +50C
- 50/60 Hz
- Standard
- Matte
- CE, IEC 60947-4-2
- LED Indicators
- Built-in
- -40C to +70C
- 110-220V AC/DC
- RS485 (optional)
- Adjustable (0~30s)
- 2G
- 110 kW
- Adjustable 30%~70%
xS1000 Soft Starter Trade Information
- 100 Piece Per Month
- 7 Days
Product Description
These Product is a solution for the controlled starting and stopping of induction motors. The xS1000 Soft Starter offers seamless integration, advanced motor protection features, and a user-friendly interface for easy operation. With its compact design and comprehensive functionality, these Product is well-suited for diverse industrial applications, providing reliable and energy-efficient motor control. Its robust construction and advanced features make it a top choice for optimizing motor performance and enhancing operational efficiency.
Efficient Motor Management
The xS1000 Soft Starter is engineered to deliver smooth, controlled motor starts and stops. Its adjustable current limit, starting torque settings, and soft stop control help protect machinery, reducing mechanical and electrical stress on your motors, which increases operational lifespan and decreases maintenance costs.
Robust Protection and Reliability
Designed with robust built-in protections such as overload, short-circuit, phase loss, and overheating prevention, the xS1000 soft starter guarantees reliable performance under tough industrial conditions. Its IP20 enclosure, thermoplastic insulation, and solid construction ensure safety and durability even in varying environments.
User-Friendly and Flexible Operation
The xS1000 offers simple installation with screw terminals and panel mounting, along with intuitive LED indicators for operational clarity. Its flexible voltage ranges, optional RS485 communication, and digital relay output make it easy to integrate with diverse control systems in industrial facilities across India.
FAQ's of xS1000 Soft Starter:
Q: How do I adjust the starting torque and soft stop time on the xS1000 Soft Starter?
A: You can set the starting torque between 30% and 70% and the soft stop time from 0 to 30 seconds using the provided control dials or configuration options. This allows you to customize motor performance to match your specific load requirements, ensuring smooth starts and stops.Q: What protections does the xS1000 Soft Starter provide during operation?
A: The unit is equipped with comprehensive protections including overload, short circuit, phase loss, and overheating safeguards. These features automatically intervene to protect your motor and the starter in case of abnormal operating conditions.Q: Where can the xS1000 Soft Starter be used, and what is its application range?
A: This soft starter is designed for industrial environments that require reliable three-phase motor starting, such as manufacturing plants, processing facilities, and heavy-duty machinery installations across India.Q: What communication options are available for integration with control systems?
A: The xS1000 soft starter offers an optional RS485 communication interface, enabling seamless integration with supervisory control and data acquisition (SCADA) or distributed control systems. It also features digital relay outputs for further connectivity.Q: What are the installation requirements for the xS1000 Soft Starter?
A: The device is designed for panel mounting using screw terminals and standard connection sizes. It can operate within input voltages of 380-480V AC and a control voltage range of 110-220V AC/DC. Ensure ambient conditions fall within the specified temperature and humidity ranges for optimal performance.Q: What are the main benefits of using the xS1000 Soft Starter over traditional starting methods?
A: Using the xS1000 helps reduce mechanical stress and electrical surges during motor starting and stopping, thus extending the life of both motors and connected equipment. Its energy-efficient operation, adjustable features, and superior protections translate into long-term operational savings and increased system reliability.Tell us about your requirement
