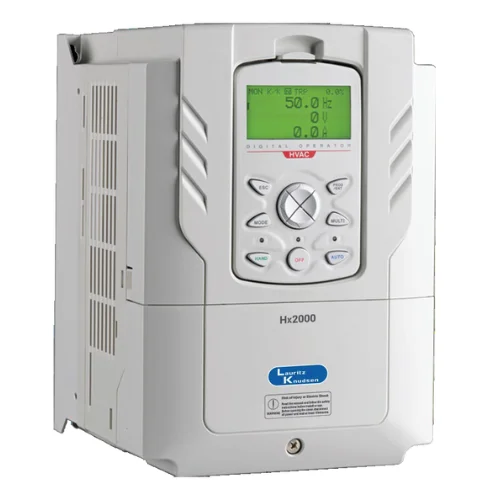

Hx2000 AC Drive

Get a Price/Quote

Product Details:

Efficiency 96%
Operating Temperature -10C to +50C
Connector Type Screw Terminals
Shape Rectangular
Feature Integrated keypad, Variable frequency control, Stable operation
Surface Finish Matte
Insulation Material Polycarbonate
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Hx2000 AC Drive Price And Quantity

Minimum Order Quantity 1 Piece

Hx2000 AC Drive Product Specifications

Efficiency 96%
Operating Temperature -10C to +50C
Connector Type Screw Terminals
Weight 3.5 kg
No Of Poles 3
Application Industrial Motor Control
Surface Finish Matte
Shape Rectangular
Feature Integrated keypad, Variable frequency control, Stable operation
Insulation Material Polycarbonate
Dimension (L*W*H) 240 x 130 x 180 mm
Mounting Type Wall Mounted
Protection Level Overload / Overvoltage / Undervoltage
Overheating Protection YES
Humidity % <95% (non-condensing)
Rated Voltage 415 V AC
Frequency (MHz) 50/60 Hz
Phase Three Phase
Product Type AC Drive
Power Factor 0.98
Input Voltage 380-480V AC
Color Grey
Material ABS Plastic
Size Standard
Connection Type Panel Mounted
Output Type Digital / Analog
Energy Consumption High Efficiency operation
IP Rating IP20

Starting Torque 150% at 1 Hz
Communication Interface RS485 (Modbus-RTU)
Model Number Hx2000
Output Frequency Range 0.1 ~ 400 Hz
Alarm Function Overload, Overheat, Stall, Phase Loss
Altitude Limit Up to 1000m without derating
Display Type 7-Segment LED
Noise Level <70 dB(A)
Control Method V/F (Voltage/Frequency) Control, Sensorless Vector Control
Cooling Method Forced Air Cooling
Input Phase Three Phase
Braking Unit Built-In
Environmental Standard RoHS Compliant

Product Description

Hx2000 AC Drive

Buildings adopt heating, ventilation, and air conditioning (HVAC) systems to increase the comfort, efficiency, and safety of occupants. As the HVAC system accounts for 50-60 % of a buildings energy use which is quite significant, the use of an HAVC drive is recommended for energy saving.

Our Hx2000 HVAC Drives are specifically designed to meet the demands of todays HVAC systems. The Hx2000 HVAC Drives control the speed of pump, fan, and compressor motors used in air handling units, cooling towers, chillers, and other HVAC applications.

Range

Global Compliance

Versatile and Reliable Motor Control

The Hx2000 AC Drive features both V/F and sensorless vector control methods, offering flexibility for varied motor control requirements. Its robust protection mechanisms such as overload, overheat, stall, and phase loss safeguards critical industrial processes. Designed for dependable operation, the unit delivers stable performance even in challenging environments, supporting high starting torque and efficient energy usage.

User-Friendly Design and Display

Equipped with a clear 7-segment LED display and an integrated keypad, the Hx2000 AC Drive allows straightforward parameter setting and operational monitoring. The panel or wall mounting options, combined with a standard-sized, matte-finished ABS housing, ensure easy installation and enduring durability in industrial conditions.

Efficient Performance and Communication

With built-in braking and RS485 (Modbus-RTU) communication, the Hx2000 drive provides seamless integration into automation systems and rapid deceleration for safety-critical stops. Forced air cooling maintains optimal performance, while the drive's high efficiency (96%) and power factor (0.98) contribute to energy savings and reduced operational costs.

FAQ's of Hx2000 AC Drive:

Q: How does the Hx2000 AC Drive ensure stable motor operation?

A: The Hx2000 uses advanced V/F and sensorless vector control, supporting a wide output frequency range (0.1400Hz) and robust starting torque (150% at 1 Hz). Combined with forced air cooling and multiple built-in alarm functions, it ensures reliable and stable performance in various industrial settings.

Q: What are the main benefits of using the Hx2000 for industrial motor control?

A: Key benefits include high efficiency (96%), integrated safety features (overload, overheat, stall, and phase loss protection), and easy-to-use functionality via its 7-segment LED display and built-in keypad. It also offers advanced communication through RS485 (Modbus-RTU), supporting seamless integration with industrial automation systems.

Q: When should I consider using the Hx2000's built-in braking unit?

A: The built-in braking unit is ideal when rapid motor deceleration is necessary, such as emergency stops or precise control of high-inertia loads. This feature enhances safety and equipment protection in dynamic processing environments.

Q: Where can the Hx2000 AC Drive be installed and what environmental conditions does it support?

A: The Hx2000 is designed for panel or wall mounting in industrial environments. It operates optimally from -10C to +50C, up to 1000 meters altitude without derating, and handles 95% non-condensing humidity. Its IP20 rating and RoHS compliance ensure suitability in diverse factory and plant settings.

Q: What is the process for connecting the Hx2000 AC Drive to industrial networks?

A: Connection is facilitated using RS485 (Modbus-RTU) communication with screw terminal connectors. This allows direct integration into automation and supervisory systems for remote monitoring, configuration, and control.

Q: How does the Hx2000 contribute to energy savings?

A: The drive operates at a high efficiency (96%) and features variable frequency control, optimizing motor energy use. Its superior power factor (0.98) minimizes losses, leading to significant energy and cost savings for continuous industrial operations.

Q: What usage applications are best suited for the Hx2000 AC Drive?

A: The Hx2000 is ideal for industrial motor control applications, particularly those requiring stable operation, high starting torque, robust protection features, and compatibility with modern automation protocols. Typical uses include conveyors, pumps, fans, and machinery with variable speed requirements.
