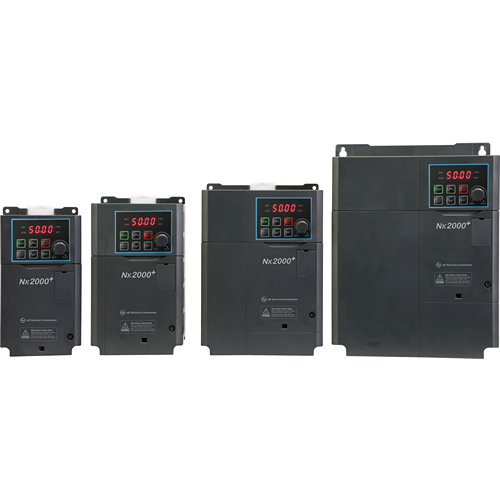

Nx2000+ 415V Three Phase Drive
Product Details:
- Overheating Protection Yes, with built-in temperature sensors
- Shape Rectangular
- Surface Finish Matte
- Humidity % <95% RH (non-condensing)
- Operating Temperature -10C to +50C
- IP Rating IP20
- Power Factor >= 0.98
- Click to view more
X
Nx2000+ 415V Three Phase Drive Price And Quantity
- 1 Piece
Nx2000+ 415V Three Phase Drive Product Specifications
- -10C to +50C
- 50/60 Hz
- Three Phase
- ABS Plastic / Metal
- 415V AC
- <95% RH (non-condensing)
- Matte
- 250 x 150 x 250 mm
- Terminal Block
- Industrial Motor Speed Control
- 5.5 kg
- Optimized for high efficiency, low standby power
- Yes, with built-in temperature sensors
- Rectangular
- Screw Terminal
- >= 96%
- Microprocessor Controlled, Digital Display, Programmable Control
- Panel Mount
- High-grade Polymer
- Overload, Short Circuit, Overvoltage
- AC Drive / Variable Frequency Drive (VFD)
- 3 Phase AC
- Grey
- 415V AC
- Standard
- IP20
- >= 0.98
- 3
- 7 Segment LED
- Keypad/PC Software
- Built-In
- 2.2 kW
- Fault/Trip/Alarm Indication
- RS485 (MODBUS)
- V/F & Vector Control
- 5.8 A
- Fan Forced Air
Nx2000+ 415V Three Phase Drive Trade Information
- 100 Piece Per Month
- 7 Days
Product Description
Lauritz Knudsen
Compact, lightweight, easy to install, operate, and service the Nx2000+ Series perfectly suits Conveyors, Pumps, Fans, and Textile machinery. It handles loads up to 11 kW and is engineered to keep your machine operating optimally, even in the hot, humid, and dusty conditions that characterize Indias industrial environment.
- 0.4kW to 11kW
Advanced Motor Control for Industrial Applications
The Nx2000+ Drive delivers flexible and precise motor speed control with programmable V/F and vector control. Designed for integration in diverse industrial settings, it enhances productivity and control, thanks to its combination of microprocessor-managed functions, intuitive programming, and digital display interface.
Durability and Safety Built In
Engineered to operate reliably within temperatures ranging from -10C to +50C and up to 95% non-condensing humidity, the Nx2000+ features robust overload, short circuit, and overvoltage protections. Its IP20-rated matte ABS and metal housing ensures safety and long-lasting performance.
Easy Installation and Versatile Connectivity
Installation is straightforward, with a panel-mount design, terminal block connectors, and screw terminals. The drive supports remote monitoring and control via RS485 MODBUS, while its compact, standard size (250 x 150 x 250 mm) allows for easy integration into existing panels.
FAQ's of Nx2000+ 415V Three Phase Drive:
Q: How is the Nx2000+ Drive programmed and monitored?
A: The Nx2000+ can be programmed using its onboard keypad or compatible PC software, providing flexibility during setup. Monitoring and control are facilitated by a clear 7-segment LED digital display, ensuring easy status checks and parameter adjustments.Q: What safety features are included with the Nx2000+ Drive?
A: It includes comprehensive safety features like overload, short circuit, overvoltage, and overheating protection with built-in temperature sensors, as well as fault, trip, and alarm indications to ensure reliable and secure motor operation.Q: When should I use V/F control versus vector control on this drive?
A: V/F control is ideal for basic speed control and applications where load torque varies little, while vector control is recommended for applications needing high starting torque and precise speed regulation, such as conveyors or hoists.Q: Where can the Nx2000+ Drive be installed?
A: This drive is intended for industrial environments and should be mounted on a panel in locations with temperatures from -10C to +50C and non-condensing humidity under 95%. Its IP20 enclosure is suitable for clean, indoor areas.Q: What is the process for connecting motor leads and power supply?
A: Connections are made through terminal block screw terminals, allowing secure and straightforward wiring of both 415V AC three-phase input and output to the motor, following the user manual guidelines to ensure proper configuration.Q: How does the drive optimize energy consumption?
A: The Nx2000+ boasts high efficiency, greater than 96%, with a design that minimizes standby power and dynamically adjusts output for energy savings during variable load conditions, lowering operational costs.Q: What are the benefits of using RS485 (MODBUS) communication with this drive?
A: RS485 MODBUS communication allows integration with external control systems and remote monitoring, enabling seamless data exchange, parameter adjustments, and diagnostics from a central control station.Tell us about your requirement
