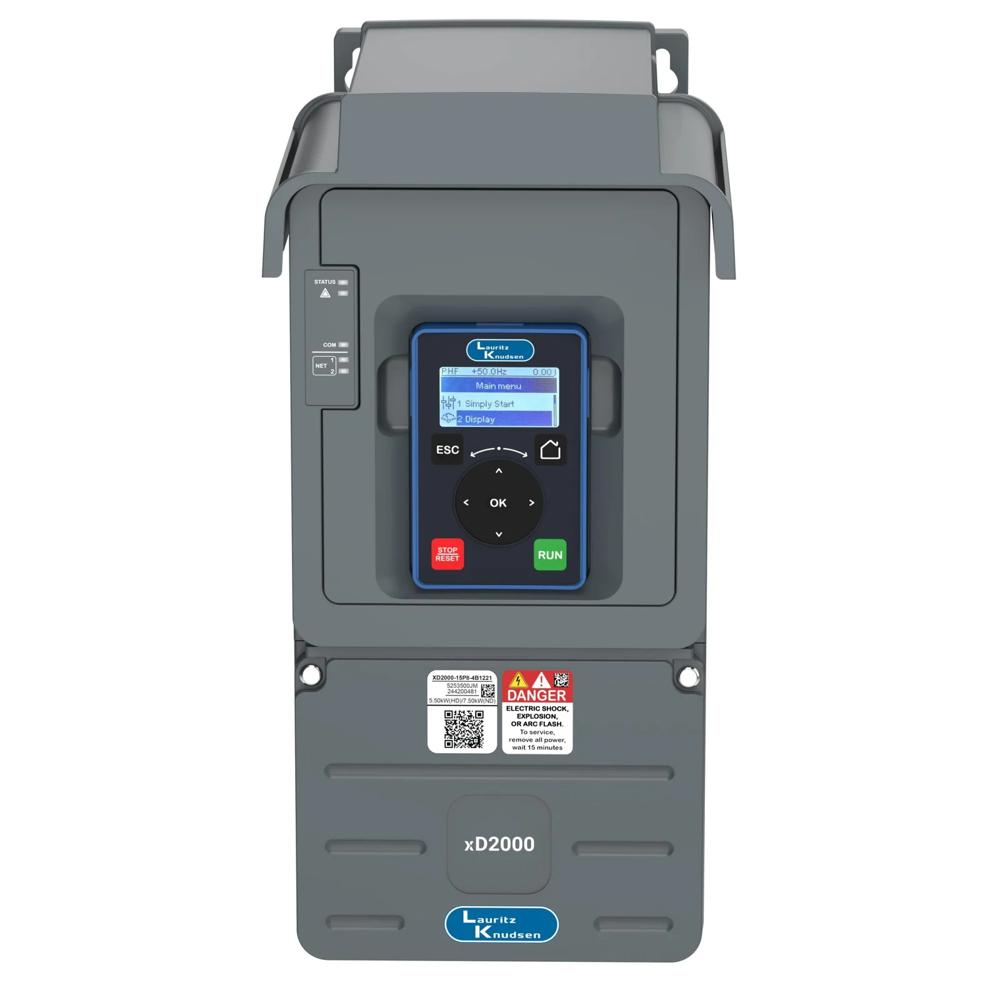

xD2000 AC Drive

Get a Price/Quote

Product Details:

Surface Finish Matte
Feature High Performance, Compact Size, Quiet Operation, Easy Installation
Efficiency >= 98%
Insulation Material Polycarbonate
Shape Rectangular
IP Rating IP20
Connector Type Pluggable Connector
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

xD2000 AC Drive Price And Quantity

Minimum Order Quantity 1 Piece

xD2000 AC Drive Product Specifications

Output Type Digital/Analog
Frequency (MHz) 50/60 Hz
Power Factor >= 0.96
Input Voltage 380-480 V AC
Dimension (L*W*H) 125 mm x 200 mm x 180 mm
Product Type AC Drive
Mounting Type Panel Mount
Material ABS Plastic
Humidity % <95% (Non-condensing)
Overheating Protection YES
Connection Type Screw Terminal
Rated Voltage 380-480 V AC
Operating Temperature -10C to +50C
Protection Level Overload, Short Circuit, Overvoltage, Undervoltage
Connector Type Pluggable Connector
Insulation Material Polycarbonate
IP Rating IP20
Size Standard
Shape Rectangular
Energy Consumption Low
Application Industrial Automation, Pumps, Fans, Conveyors
Phase Three Phase
Efficiency >= 98%
Feature High Performance, Compact Size, Quiet Operation, Easy Installation
No Of Poles 3
Surface Finish Matte
Weight 3.6 kg
Color Black/Grey

Display Type LCD Digital Keypad
Braking Unit Built-in
Suitable Motor Induction Motor, Synchronous Motor
Acceleration/Deceleration Time 0.1-6000s adjustable
EMC Compliance EN61800-3
Cooling Method Air Cooling
Motor Power Range 0.75kW to 7.5kW
Noise Level <60 dB(A)
Storage Temperature -20C to 65C
Control Method V/F Control, Sensorless Vector Control
Start/Stop Control Remote & Local
Alarm System LED Indicator & Fault Code Display
Communication Interface RS485/Modbus

xD2000 AC Drive Trade Information

Supply Ability 50 Piece Per Month
Delivery Time 10 Days

Product Description

xD2000

These Drive is a high-performance variable frequency drive designed to deliver exceptional control and efficiency for a variety of utility applications with its advanced control capabilities. The xD2000 allows for seamless integration into automation systems, enhancing overall operational performance. Its robust design ensures reliability in demanding environments, while features like energy-saving modes help reduce operational costs. The user-friendly interface simplifies setup and adjustments, making the xD2000 an ideal choice for both new installations and upgrades

Advanced Motor Control and Versatility

The xD2000 AC Drive provides flexible motor control through selectable V/F and sensorless vector modes, making it ideal for both induction and synchronous motors. Its wide power range and multiple application compatibility support demanding industrial systems where precision and efficiency are paramount. Employing advanced algorithms, it ensures stable output and responsive operation for smooth motor performance.

User-Friendly Design and Safety Features

Equipped with an intuitive LCD digital keypad, the xD2000 AC Drive allows quick access to parameter settings and monitoring. The drive emphasizes safety and fault detection with an integrated LED indicator, fault code display, and a comprehensive protection suite, including overload, short circuit, and overheating safeguards. All of these are presented in a durable, compact, and easily mountable enclosure.

FAQ's of xD2000 AC Drive:

Q: How do I install the xD2000 AC Drive for my industrial automation setup?

A: The xD2000 AC Drive is designed for panel mounting using standard screw terminals and pluggable connectors. Ensure the input voltage is 380-480V AC, and follow the wiring diagram provided in the manual. Properly cool and space the unit as per ventilation requirements to maintain optimal operation within -10C to +50C.

Q: What types of motors are compatible with the xD2000 AC Drive?

A: This drive supports both induction motors and synchronous motors within the 0.75kW to 7.5kW range. Compatibility with three-phase motors allows versatility across pumps, fans, conveyors, and other automation systems.

Q: When should I use V/F control versus sensorless vector control?

A: V/F control is ideal for basic speed control in applications with stable load demands, like pumps and fans. Sensorless vector control, however, is recommended for more dynamic systems requiring higher precision and torque, such as conveyors or machinery with variable loads.

Q: Where can I view operational status and adjust parameters on the xD2000 AC Drive?

A: The drive features an LCD digital keypad for real-time display of operational status and parameter adjustments. Additionally, alarms, fault codes, and status indications are visible via the integrated LED indicator and display panel.

Q: What process is in place to protect the xD2000 AC Drive from electrical faults?

A: The xD2000 incorporates comprehensive protections including overload, short circuit, overvoltage, undervoltage, and overheating safeguards. It also notifies users via LED faults and display codes for quick troubleshooting and maintenance.

Q: How does the built-in braking unit benefit my application?

A: With its built-in braking capability, the xD2000 ensures rapid motor deceleration and enhanced control during stopping, particularly useful in conveyor and material handling applications. This feature improves safety and operational efficiency.

Q: What are the key benefits of using the xD2000 AC Drive in industrial environments?

A: Key benefits include high efficiency (98%), low noise (<60 dB), robust protection features, easy installation, energy savings, and compliance with EMC standards. Its compact size and durable construction facilitate integration into various industrial systems, offering reliable performance and long service life.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'LK AC DRIVE' category

Px3000 Solar VFD Minimum Order Quantity : 1 Input Voltage : 300V DC 750V DC Output Type : Three Phase Output Power Factor : 0.98 Frequency (MHz) : 50/60 Hz Material : ABS Plastic Dimension (L*W*H) : 350 mm x 205 mm x 190 mm Product Type : Solar VFD (Variable Frequency Drive) Mounting Type : Wall Mount Overheating Protection : YES Humidity % : 0% 95% RH (noncondensing) Operating Temperature : 10C to +50C Rated Voltage : 380V AC Connection Type : Screw Terminal Insulation Material : Polycarbonate Shape : Rectangular Size : Standard IP Rating : IP21 Connector Type : Phoenix Type Protection Level : Other, Overload, Shortcircuit, Dry Run, Overvoltage, Undervoltage Energy Consumption : Low Feature : MPPT Control, UserFriendly Interface, Easy Installation Application : Solar Pumping Systems, Agricultural Irrigation, Industrial Automation Efficiency : 98% Phase : Three Phase Surface Finish : Matte Weight : 7.5 kg Color : Grey No Of Poles : 3

Send Inquiry

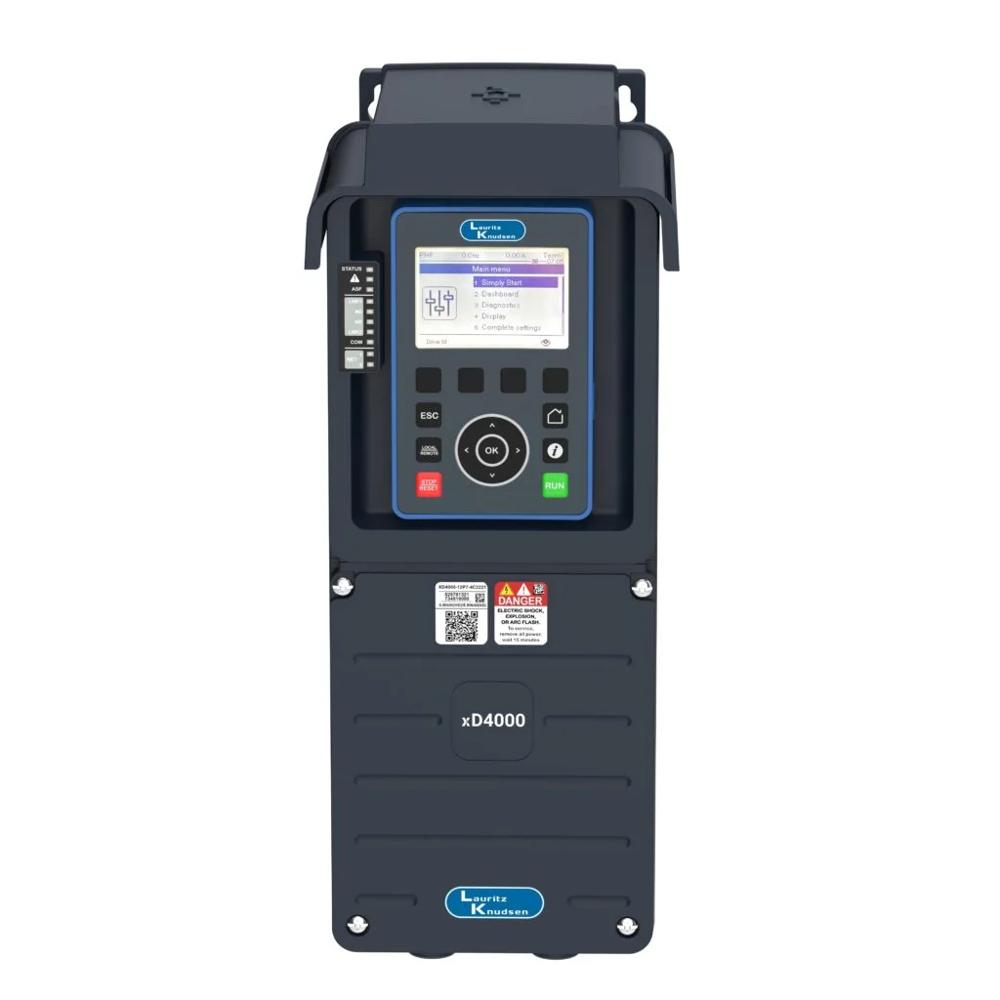

xD4000 Ac Drive Minimum Order Quantity : 1 Input Voltage : 380V AC Output Type : Digital Power Factor : =0.98 Frequency (MHz) : 50/60 Hz Material : ABS Plastic Dimension (L*W*H) : 180 mm x 152 mm x 134 mm Product Type : Variable Frequency AC Drive Mounting Type : Panel Mounted Overheating Protection : YES Humidity % : 095% (NonCondensing) Operating Temperature : 10C to +50C Rated Voltage : 380V AC Connection Type : Screw Terminal Insulation Material : Polycarbonate Shape : Rectangular Size : Standard IP Rating : IP20 Connector Type : Screw Terminal Block Protection Level : Other, Overload, Overvoltage, Undervoltage, Short Circuit Energy Consumption : Low energy consumption Feature : High Performance, User Friendly Application : Industrial Motor Speed Control Efficiency : 93% Phase : Three Phase Surface Finish : Smooth Weight : 2.5 kg Color : Grey and Black No Of Poles : 3
