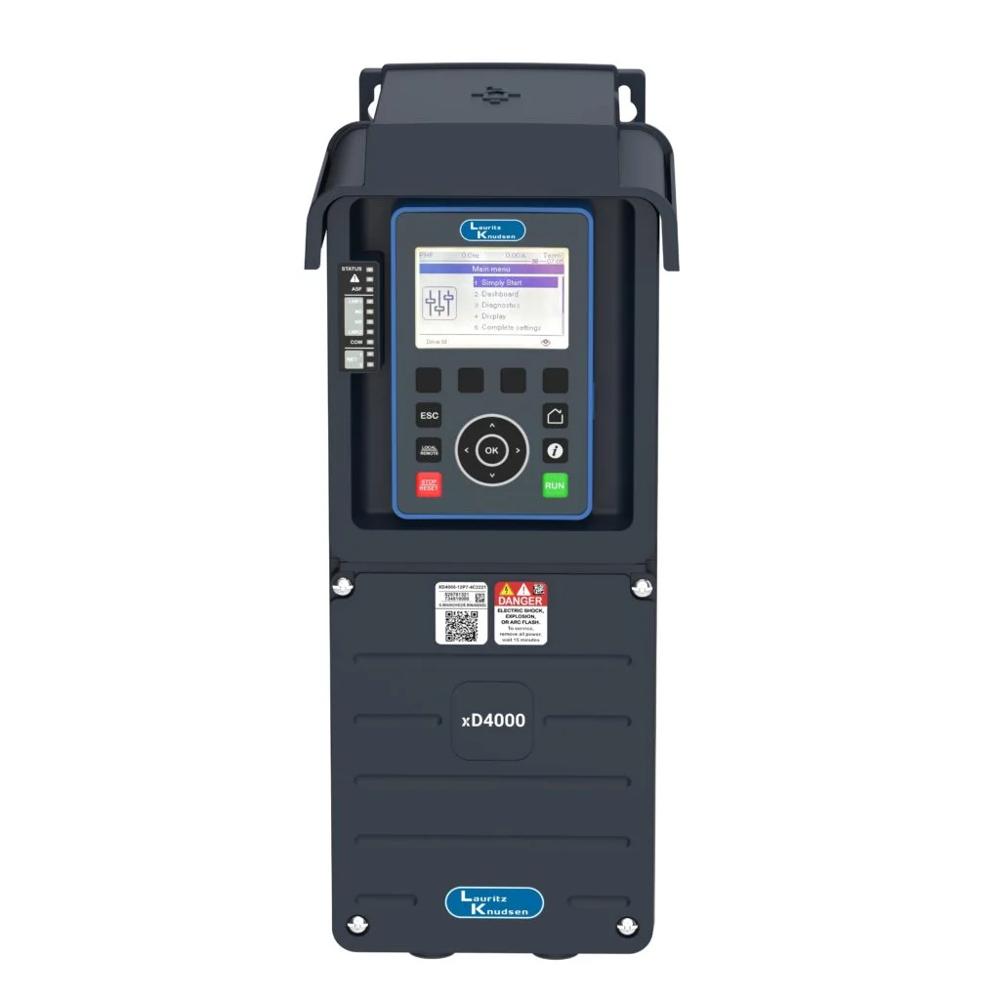

xD4000 Ac Drive

Get a Price/Quote

Product Details:

Surface Finish Smooth
Mounting Type Panel Mounted
Insulation Material Polycarbonate
Shape Rectangular
Operating Temperature -10C to +50C
Power Factor >=0.98
Feature High Performance, User Friendly
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

xD4000 Ac Drive Price And Quantity

Minimum Order Quantity 1 Piece

xD4000 Ac Drive Product Specifications

Frequency (MHz) 50/60 Hz
Overheating Protection YES
Humidity % 0-95% (Non-Condensing)
Size Standard
Application Industrial Motor Speed Control
Phase Three Phase
Rated Voltage 380V AC
Product Type Variable Frequency AC Drive
IP Rating IP20
Connector Type Screw Terminal Block
Efficiency > 93%
No Of Poles 3
Protection Level Overload, Overvoltage, Undervoltage, Short Circuit
Output Type Digital
Input Voltage 380V AC
Surface Finish Smooth
Weight 2.5 kg
Energy Consumption Low energy consumption
Material ABS Plastic
Mounting Type Panel Mounted
Connection Type Screw Terminal
Insulation Material Polycarbonate
Operating Temperature -10C to +50C
Shape Rectangular
Color Grey and Black
Power Factor >=0.98
Dimension (L*W*H) 180 mm x 152 mm x 134 mm
Feature High Performance, User Friendly

Display Type LED Digital Display
Braking Unit Integrated
Start/Stop Method Keypad, Remote
Output Frequency Range 0.5 to 400 Hz
Altitude Up to 1000 m without derating
Environmental Standards RoHS Compliant
Maximum Output Current 8.2 A
Control Method V/F Control, Vector Control
Communication Port RS485 Modbus
Noise Level <65 dB
Cooling System Built-in Fan
Storage Temperature -20C to 60C
Programming Multifunctional Programmable Inputs

xD4000 Ac Drive Trade Information

Supply Ability 50 Piece Per Month
Delivery Time 10 Days

Product Description

xD4000

The xD4000 Drive is a highly advanced variable frequency drive designed for demanding applications in industries such as manufacturing, water treatment, and process automation. Featuring a powerful control algorithm, the xD4000 provides precise motor control and exceptional performance, ensuring optimal operation across various load conditions. Its extensive connectivity options enable easy integration with existing automation systems, while built-in energy-saving features help reduce operational costs. The xD4000 also boasts a user-friendly interface for quick setup and intuitive operation, making it an excellent choice for enhancing efficiency and productivity in any industrial environment.

High Performance & Flexibility

The xD4000 AC Drive supports both V/F and vector control methods, allowing precise speed control for a wide range of industrial motors. Its output frequency range of 0.5-400 Hz and integrated braking unit enable efficient operation in demanding applications, providing superior performance while maintaining energy efficiency above 93%.

Robust Safety & Environmental Compliance

Equipped with advanced protection features such as overload, overvoltage, undervoltage, and short circuit safeguards, the xD4000 ensures consistent safety during operation. Designed with RoHS compliance and a low-energy consumption profile, it is well-suited for environmentally conscious industries in India.

User-Centric Design & Connectivity

A clear LED digital display, multifunctional programmable inputs, and intuitive keypad or remote controls promote seamless operation of the xD4000. Its RS485 Modbus communication port enhances integration with industrial automation systems, while the panel-mount design and screw terminal block facilitate straightforward installation.

FAQ's of xD4000 Ac Drive:

Q: How can I start and stop the xD4000 AC Drive?

A: The xD4000 AC Drive can be started and stopped using either the built-in keypad or through remote control. This flexibility allows you to operate the drive locally on the device or integrate it easily into your existing remote control systems.

Q: What types of protection does the xD4000 AC Drive provide during operation?

A: This drive offers comprehensive protection, including safeguards against overload, overvoltage, undervoltage, short circuit, and overheating. These features ensure safe and reliable operation, even under challenging industrial conditions.

Q: When is it necessary to use the integrated braking unit in the xD4000 AC Drive?

A: The integrated braking unit is essential when rapid deceleration of the motor is required. It helps quickly dissipate the energy generated during motor stopping, which is especially beneficial in high-speed or high-inertia applications.

Q: Where is the xD4000 AC Drive best installed?

A: The drive is designed for panel mounting, making it suitable for installation within control panels in industrial environments. Its IP20 rating, robust enclosure, and standard size ensure easy integration into existing electrical systems.

Q: What process is involved in programming the xD4000's functions?

A: You can program the xD4000 AC Drive using the LED digital display and keypad, setting parameters such as motor speed, acceleration, and input functions. Multifunctional programmable inputs enable customization tailored to specific process requirements.

Q: How does the xD4000 AC Drive benefit industrial applications in energy efficiency?

A: With an efficiency greater than 93% and a power factor of at least 0.98, the xD4000 minimizes energy losses while maximizing output. Its low energy consumption design makes it cost-effective for continuous industrial operation while helping to reduce operational expenses.
