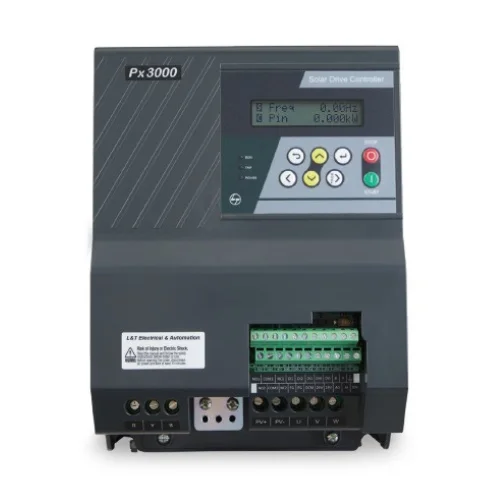

Px3000 Solar VFD

Get a Price/Quote

Product Details:

Power Factor 0.98
Feature MPPT Control, User-Friendly Interface, Easy Installation
Surface Finish Matte
Operating Temperature -10C to +50C
Overheating Protection YES
IP Rating IP21
Connector Type Phoenix Type
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Px3000 Solar VFD Price And Quantity

Minimum Order Quantity 1 Piece

Px3000 Solar VFD Product Specifications

Output Type Three Phase Output
No Of Poles 3
Power Factor 0.98
Feature MPPT Control, User-Friendly Interface, Easy Installation
Surface Finish Matte
Phase Three Phase
Operating Temperature -10C to +50C
Protection Level Overload, Short-circuit, Dry Run, Over-voltage, Under-voltage
Overheating Protection YES
IP Rating IP21
Weight 7.5 kg
Energy Consumption Low
Input Voltage 300V DC - 750V DC
Size Standard
Rated Voltage 380V AC
Product Type Solar VFD (Variable Frequency Drive)
Connector Type Phoenix Type
Shape Rectangular
Mounting Type Wall Mount
Application Solar Pumping Systems, Agricultural Irrigation, Industrial Automation
Dimension (L*W*H) 350 mm x 205 mm x 190 mm
Color Grey
Efficiency >98%
Material ABS Plastic
Insulation Material Polycarbonate
Connection Type Screw Terminal
Frequency (MHz) 50/60 Hz
Humidity % 0% - 95% RH (non-condensing)

Ambient Altitude Up to 2000 m
Maximum Output Current 10A
EMC Compliance EN61800-3
Relay Output Programmable (1 C/O)
Overload Capacity 150% for 60 seconds
Remote Start/Stop Supported
Analog Input 0-10V/4-20mA
Communication Ports RS485/Modbus compatible
Fault Indication Digital Display with Error Codes
Motor Compatible Induction Motor, Permanent Magnet Motor
Noise Level <65dB
Solar MPPT Range 200V-360V DC
Cooling Method Forced Air Cooling
User Interface LED Keypad, Buzzer Alarm
Control Method V/F Control and Sensorless Vector Control

Px3000 Solar VFD Trade Information

Supply Ability 100 Piece Per Month
Delivery Time 7 Days

Product Description

Px3000 Solar VFD

The continuously rising demand for energy, along with its limited availability and increasing cost, is making a clarion call to end-users to enhance their energy efficiency. AC Drive systems play a vital role in not only reducing energy consumption but also minimizing wear and tear on mechanical equipment.

With over three decades of experience, we have garnered extensive expertise across diverse industries and applications. This wealth of knowledge empowers us to deliver unparalleled Drive solutions tailored to your specific needs. The use of renewable energy for a sustainable life is the need of the hour. Solar energy is something that nature provides for free, and it is the ideal solution for powering water pumps and farmlands.

Additionally, where grid connectivity is either absent or irregular, solar energy is the perfect alternative. Px3000 from L&T Electrical & Automation is a make-in-India solar drive controller and an innovative solution that harnesses solar energy for pumping applications. The Px3000 Solar Drive Controller efficiently utilizes solar energy to operate the pump/motor while providing complete protection to it.

Optimized for Solar Applications

The Px3000 Solar VFD integrates advanced MPPT control, maximizing energy harvest from solar arrays even under fluctuating sunlight. Its compatibility with both induction and permanent magnet motors makes it a perfect fit for solar pumping in agricultural and industrial settings. Operating within 200V-360V DC MPPT range, it contributes to low energy consumption while delivering high efficiency over 98%.

Reliable Performance in Demanding Environments

Designed to withstand up to 2000 meters altitude and temperatures from -10C to +50C, the Px3000 ensures reliable operation even in harsh conditions. Forced air cooling keeps the unit at optimal temperatures, while robust protection mechanisms guard against overload, overheating, short-circuits, and voltage irregularities.

User-Friendly Control and Communication

With an LED keypad, digital fault display, and buzzer alarm, the Px3000 makes operation and troubleshooting intuitive. It also features a programmable relay output, remote start/stop capability, and RS485/Modbus communication for seamless integration into automated systems. Installation is simple with wall mounting and Phoenix-type connectors.

FAQ's of Px3000 Solar VFD:

Q: How do I install the Px3000 Solar VFD for my solar pumping system?

A: The Px3000 can be wall-mounted using its robust ABS construction. Follow the standard wiring procedure via screw terminals or Phoenix-type connectors, ensuring the input voltage (300V DC to 750V DC) and solar MPPT range (200V-360V DC) are compatible with your system. The user-friendly interface and surface finish make installation straightforward.

Q: What motors are compatible with the Px3000 Solar VFD?

A: This VFD is compatible with both induction motors and permanent magnet motors, making it suitable for diverse pumping and automation applications. The control methods include V/F control as well as sensorless vector control, allowing for flexibility and efficient performance.

Q: Where can the Px3000 Solar VFD be operated effectively?

A: The Px3000 is designed to operate effectively in environments up to 2000 meters altitude, with ambient temperatures ranging from -10C to +50C and humidity ranging from 0% to 95% RH (non-condensing). Its IP21 rating provides adequate protection for most indoor and sheltered outdoor installations.

Q: When should I use the fault indication system on the Px3000?

A: If the VFD detects issues such as overload, short-circuit, dry run, or voltage anomalies, the digital display will show specific error codes and activate a buzzer alarm. Refer to the user manual for error code definitions and troubleshooting steps to resolve issues promptly.

Q: What benefits does the Px3000 offer for solar irrigation and industrial automation?

A: The Px3000 maximizes energy efficiency with >98% operational effectiveness and a power factor of 0.98, ensuring low energy consumption. With built-in MPPT, remote control, programmable relay, and comprehensive protection features, you gain reliability, long lifespan, and reduced maintenance downtime in your automation or irrigation processes.

Q: How can I remotely control or monitor the Px3000?

A: Remote start/stop control is supported via input terminals, while the RS485/Modbus port allows for remote monitoring, configuration, and integration into SCADA or other automation systems for centralized management.

Q: What safety measures and protections are included in the Px3000?

A: The drive offers multiple protection features: overload, short-circuit, dry run, over-voltage, under-voltage, and overheating protection. Audible alarms and digital code displays ensure real-time awareness of system status, promoting safe operation and rapid fault resolution.
